How to Forge a Katana: The Traditional Japanese Sword Making Process

Forging a katana is a long and highly skilled process that combines metallurgy, craftsmanship, patience, and traditional Japanese sword-making techniques. A traditional katana is not simply shaped from a piece of steel. Its final form depends on careful forging, heat treatment, differential hardening, polishing, and precise assembly.

If you have ever wondered how to forge a katana, it is important to understand that authentic Japanese sword making requires specialized equipment and years of experience. Professional swordsmiths carefully control temperature, steel structure, blade geometry, and heat treatment throughout the entire process.

This guide explains the basic katana forging process and how a traditional Japanese-style sword is made, from raw steel to the finished blade.

What Is a Katana?

A katana is a traditional Japanese sword characterized by its curved, single-edged blade, long grip, and distinctive construction. Historically, the katana was associated with the samurai class and became one of the most recognizable swords in Japanese history.

A traditional katana usually includes several important parts, including the blade, tang, guard, handle, scabbard, and various fittings. The blade itself is the result of a complex forging and heat-treatment process designed to create a balance between hardness and flexibility.

Understanding how a katana is made begins with understanding the steel and the traditional methods used to transform it into a finished blade.

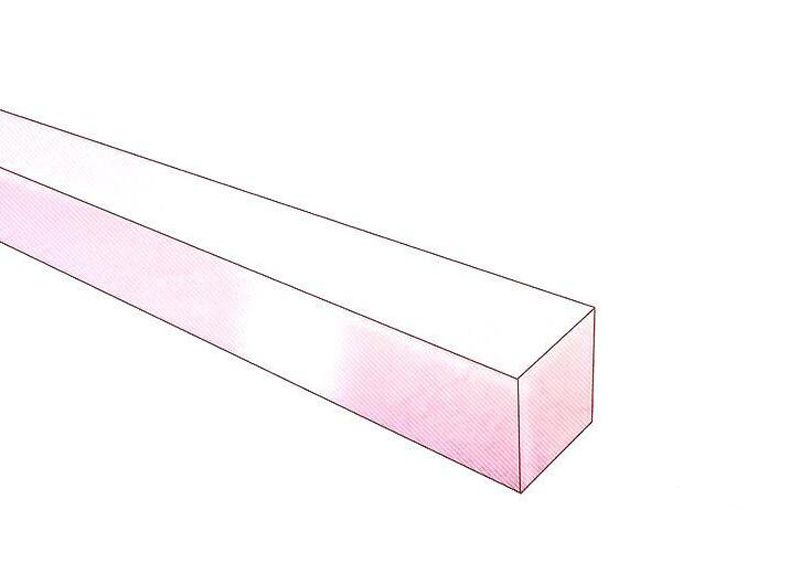

1. Selecting the Steel for Katana Forging

The first stage of the katana forging process is selecting suitable steel. Traditional Japanese swordsmiths historically used tamahagane, a type of steel produced from iron sand in a traditional clay furnace.

Modern sword makers may use other types of high-carbon steel depending on the desired blade characteristics. Different steels can affect hardness, flexibility, edge retention, and the final appearance of the blade.

Before forging begins, the swordsmith must carefully consider the properties of the steel. A katana blade needs more than simple hardness. A blade that is too hard may become brittle, while a blade that is too soft may fail to maintain its shape or edge.

The goal is to create a blade with a practical balance of strength, toughness, and cutting performance.

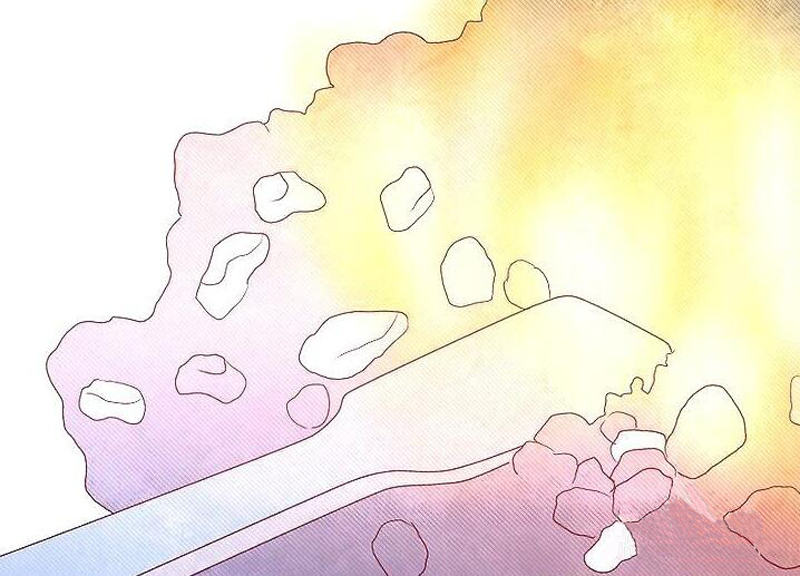

2. Heating the Steel

Once the steel has been selected, it is heated in a forge until it reaches the proper working temperature. Temperature control is one of the most important parts of forging a Japanese sword.

When the steel becomes sufficiently hot, it becomes more workable and can be shaped with a hammer. Experienced swordsmiths often judge the temperature of the steel by its color and behavior during forging.

The steel cannot simply remain in the forge indefinitely. Excessive heat may damage the material or change its properties. For this reason, the heating and forging stages require careful timing and constant attention.

Traditional katana forging involves repeatedly heating the steel, removing it from the forge, shaping it with controlled hammer strikes, and returning it to the heat when necessary.

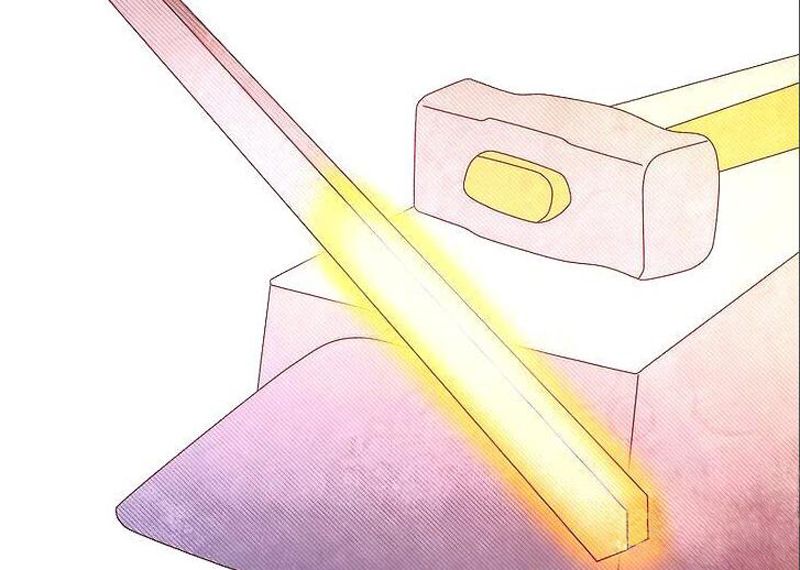

3. Folding and Refining the Steel

One of the most famous aspects of traditional Japanese sword making is the folding of the steel. In historical katana production, the steel could contain impurities and variations in carbon content.

By repeatedly forging, folding, and welding the steel, the swordsmith could help refine the material and create a more consistent structure.

The steel is heated, folded, hammered together, and forged again. This process may be repeated multiple times depending on the traditional method and the characteristics of the steel.

Modern steel production is very different from historical steel production, so folding is not always necessary for modern sword blades. However, folding remains an important part of traditional Japanese sword craftsmanship and can contribute to the distinctive appearance of a folded steel blade.

The visible grain pattern produced by folded steel is often referred to as hada.

4. Forging the Basic Shape of the Katana Blade

After the steel has been prepared, the swordsmith begins shaping the blade. The heated steel is carefully hammered to create the basic length, width, thickness, and geometry of the future katana.

This stage requires much more than simply flattening a piece of steel. The swordsmith must carefully control the overall proportions of the blade.

Important features include the blade's width, thickness, edge geometry, spine, point, and tang. The tang, known as the nakago, extends into the handle and plays an important role in the construction of the finished sword.

The swordsmith gradually develops the shape of the blade through repeated heating and hammering. Precision becomes increasingly important as the blade approaches its final dimensions.

5. Creating the Blade Geometry

A katana blade has a carefully designed cross-section. The geometry of the blade affects its strength, cutting performance, weight, and overall balance.

During the forging process, the swordsmith develops the relationship between the cutting edge and the spine of the blade. A traditional katana is designed to combine a relatively hard cutting edge with a tougher and more flexible body.

The blade is also shaped toward the tip, known as the kissaki. The kissaki is one of the most recognizable features of a Japanese sword and requires careful attention during forging and polishing.

At this stage, the blade is still far from its final appearance. Further shaping and heat treatment are required before the katana becomes a finished sword.

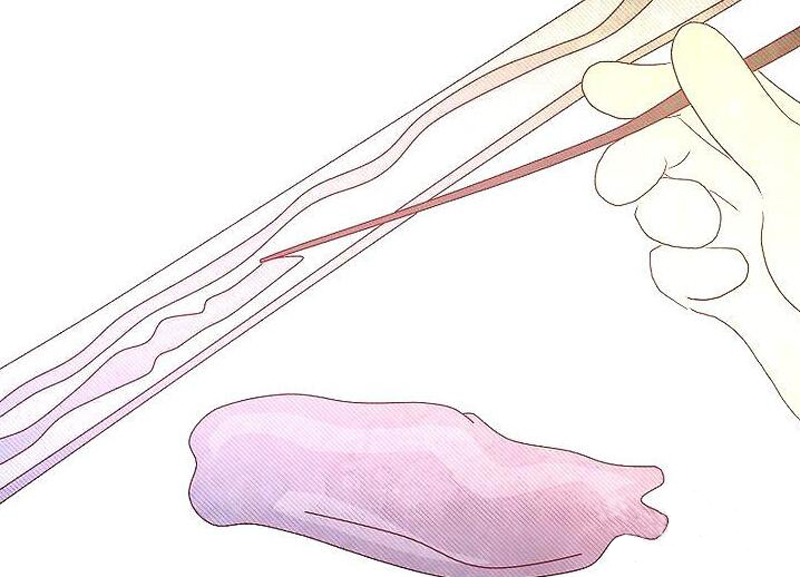

6. Clay Tempering the Katana Blade

Clay tempering is one of the most important traditional techniques used in Japanese sword making. A special clay mixture is applied to different areas of the blade before heat treatment.

The edge of the blade receives a different clay coating from the spine. This difference affects how quickly various parts of the blade cool during quenching.

The purpose of this process is to create different characteristics within the blade. The cutting edge can become harder, while the spine retains greater flexibility and toughness.

Clay tempering is closely associated with the creation of the hamon, the visible temper line found on traditionally differentially hardened Japanese swords.

The exact appearance of the hamon depends on many factors, including the steel, clay application, temperature, quenching process, and polishing.

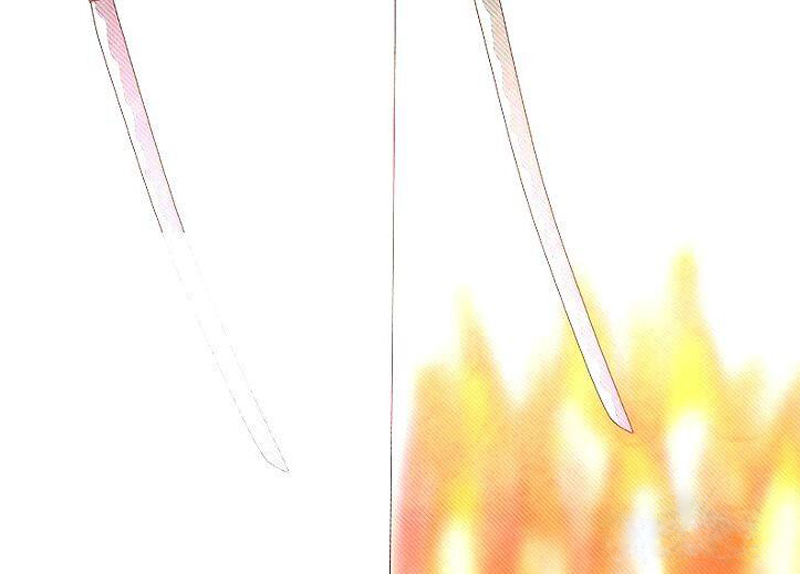

7. Quenching and Differential Hardening

After the clay-coated blade is heated to the appropriate temperature, it undergoes the quenching process. This is one of the most critical stages in traditional katana forging.

During quenching, the blade cools rapidly. Because the clay coating affects the cooling rate across different areas of the blade, the edge and spine can develop different physical properties.

Differential hardening helps create the combination of a hard cutting edge and a more resilient spine that is associated with traditional Japanese swords.

This process also contributes to the curvature of the katana. The blade may develop its characteristic curve during heat treatment because different areas of the steel react differently as they cool.

Quenching is a highly technical process. Small differences in temperature, steel composition, timing, or cooling conditions can significantly affect the final blade.

8. Tempering the Blade

After quenching, the blade may be extremely hard but also under significant internal stress. Tempering is used to help reduce brittleness and improve the overall balance of the steel.

During tempering, the blade is carefully reheated under controlled conditions. The purpose is to adjust the mechanical properties of the steel and reduce the risk of excessive brittleness.

This stage is essential because a functional sword blade requires a balance between hardness and toughness.

A successful katana is not simply the hardest blade possible. The quality of a sword depends on how well the steel, geometry, heat treatment, and craftsmanship work together.

9. Grinding and Shaping the Katana

Once the forging and heat-treatment stages are complete, the blade must be carefully shaped and refined.

Grinding helps establish the final geometry of the blade. Excess material is removed, surfaces are refined, and the proportions of the edge and spine are adjusted.

This process requires precision because excessive grinding can permanently damage the blade. The geometry established during this stage affects both the appearance and performance of the finished sword.

The blade gradually begins to take on the recognizable appearance of a Japanese katana.

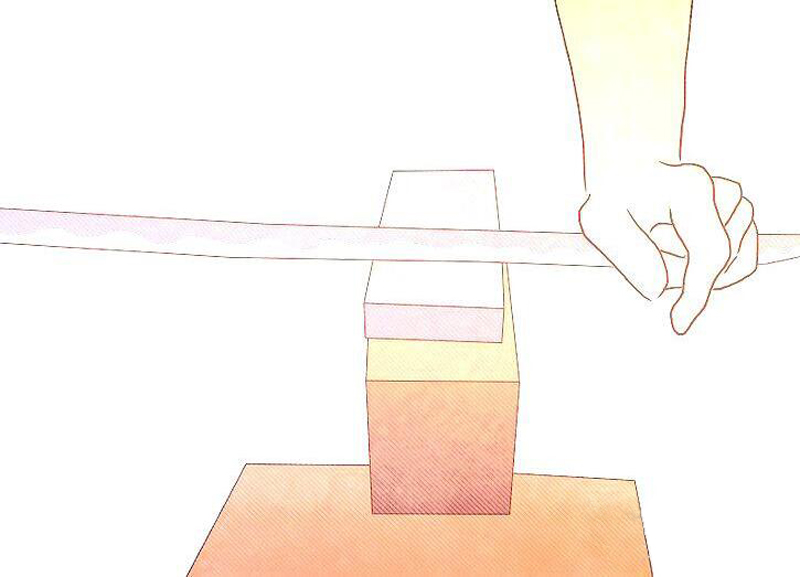

10. Polishing the Katana Blade

Polishing is an important stage in the Japanese sword-making process. Traditional sword polishing is a specialized craft and can require extensive experience.

The purpose of polishing is not simply to make the blade shiny. Proper polishing helps refine the blade's geometry and reveal important visual characteristics of the steel.

A skilled polish can make the hamon, steel grain, and other features of the blade more visible.

Traditional Japanese sword polishing often involves the use of progressively finer polishing stones. Each stage prepares the blade for the next level of refinement.

The final appearance of a katana depends heavily on the quality of the polishing process.

11. Making the Nakago and Preparing the Blade for Assembly

The tang of a Japanese sword is called the nakago. It extends from the blade into the handle and is an essential part of the sword's structure.

The nakago is carefully shaped to fit inside the handle, known as the tsuka. Holes may be created in the tang to allow bamboo pins, called mekugi, to secure the blade inside the handle.

Unlike a decorative knife handle, the construction of a traditional katana must securely support the blade.

Proper assembly is therefore an important part of how a Japanese sword is made.

12. Making the Tsuka and Sword Fittings

The handle of a katana is called the tsuka. Traditional katana handles are commonly constructed from wood and designed to fit around the tang of the blade.

The handle may include rayskin, known as samegawa, and a traditional handle wrapping called tsuka-ito.

A Japanese sword also includes several important fittings. These may include:

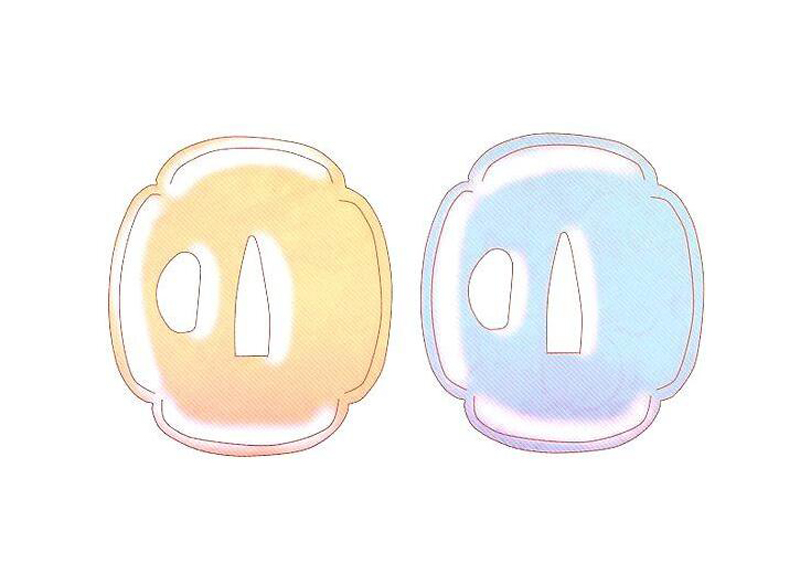

• The tsuba, or sword guard.
• The habaki, a metal collar fitted near the base of the blade.
• The seppa, spacer washers used around the sword fittings.
• The fuchi, a fitting located near the guard.
• The kashira, the fitting at the end of the handle.
• The mekugi, traditionally bamboo pins that help secure the blade.

These components work together to create the finished mounting of the katana.

13. Making the Saya

The scabbard of a Japanese sword is called the saya. A properly fitted saya protects the blade when the sword is not in use.

Traditional saya are often made from lightweight wood. The inside must be carefully shaped so that the blade fits properly without unnecessary movement or contact.

A poorly fitted scabbard may damage the blade or allow excessive movement during storage.

The saya may also include a sageo, a cord attached to the scabbard, along with other decorative or functional fittings.

How Long Does It Take to Forge a Katana?

The amount of time required to forge a katana depends on the type of steel, the complexity of the blade, the forging method, and the finishing process.

The forging itself represents only one part of the overall process. Heat treatment, grinding, polishing, fitting the handle, making the saya, and assembling the sword can require significant additional time.

Traditionally made Japanese swords are the result of multiple specialized crafts. A swordsmith may forge the blade, while other craftsmen handle polishing, scabbard making, handle construction, and decorative fittings.

For this reason, creating a high-quality katana is a much more complex process than simply heating and hammering steel into the shape of a sword.

Can You Forge a Katana at Home?

It is possible for experienced bladesmiths to study Japanese-inspired sword forging techniques, but forging a katana requires specialized tools, knowledge, and appropriate safety precautions.

Professional swordsmithing involves high temperatures, heavy equipment, cutting and grinding tools, and complex heat-treatment processes. A mistake during forging or quenching can damage the blade and may create serious safety risks.

For beginners interested in Japanese sword making, studying the history and construction of katana blades is often a better starting point than attempting to reproduce a traditional sword without professional training.

Learning basic bladesmithing techniques under the guidance of an experienced instructor can also provide a safer introduction to the craft.

Traditional Katana Forging vs. Modern Sword Making

Modern sword makers have access to steels that are more consistent than many of the materials available to historical swordsmiths.

As a result, a modern Japanese-style sword does not necessarily need to follow every historical method in order to become a functional blade.

Traditional katana forging, however, remains important because it represents centuries of Japanese craftsmanship and cultural history.

Techniques such as folded steel construction, differential hardening, clay tempering, and traditional polishing continue to be admired by sword collectors and enthusiasts around the world.

Whether a blade is made using traditional or modern techniques, the quality of the finished sword depends on the skill of the maker and the careful control of each stage of production.

Conclusion: The Art Behind Forging a Katana

Learning how to forge a katana provides a deeper appreciation for the craftsmanship behind traditional Japanese swords.

The katana forging process involves far more than shaping heated steel. The swordsmith must understand steel selection, forging, blade geometry, heat treatment, differential hardening, tempering, polishing, and final assembly.

Every stage contributes to the final result.

From the first heating of the steel to the final fitting of the handle and scabbard, the making of a katana represents a combination of technical knowledge and traditional craftsmanship.

For sword enthusiasts, collectors, and anyone interested in Japanese sword history, understanding how a katana is made is one of the best ways to appreciate the skill behind these iconic blades.

Frequently Asked Questions About Forging a Katana

1. How is a katana forged?

A katana is forged by heating and shaping steel, refining the material, developing the blade geometry, applying clay for differential hardening, heat treating the blade, polishing it, and assembling it with the handle and other sword fittings.

2. What steel is traditionally used to forge a katana?

Traditional Japanese katana were commonly made from tamahagane, a type of steel historically produced from iron sand. Modern sword makers may also use various high-carbon steels.

3. Why are katana blades folded during forging?

Historically, folding helped refine traditional steel and distribute carbon more evenly throughout the material. Folding can also create visible grain patterns in the finished blade.

4. What is clay tempering on a katana?

Clay tempering is a traditional heat-treatment technique in which different areas of the blade receive different clay coatings. This affects the cooling rate during quenching and helps create differential hardening.

5. What creates the hamon on a katana?

The hamon is associated with the differential hardening process. The combination of steel, clay application, heating, quenching, and polishing determines how the temper line appears on the finished blade.

6. How long does it take to make a katana?

The time required depends on the forging method and level of craftsmanship. Forging is only one part of the process, while polishing, handle construction, fittings, and scabbard making can require additional time.

7. Can a beginner forge a katana?

Forging a functional katana requires specialized knowledge, equipment, and experience. Beginners interested in sword making should first learn basic metalworking and bladesmithing techniques with appropriate training and safety precautions.

8. Are modern katana made the same way as traditional Japanese swords?

Not always. Modern sword makers may use industrially produced steel and modern equipment. However, many handmade Japanese-style swords continue to use traditional techniques such as forging, clay tempering, differential hardening, and hand polishing.
